64  Line Graphs

dataD <- readxl::read_excel("C:/Dataset/rainfall.xlsx")

the_year <- 2001
dataD %>%
    janitor::clean_names() %>%
    rename(date_1 = time) %>%
    arrange(date_1) %>%
    mutate(
        year_1 = lubridate::year(date_1),
        day = lubridate::day(date_1),
        mth = lubridate::month(date_1),
        the_year = year_1 == the_year) %>%
    group_by(year_1) %>%
    mutate(cum_rainfall = cumsum(rainfall)) %>%
    ungroup() %>%
    mutate(new_date = lubridate::ymd(str_glue("2000-{mth}-{day}"))) %>%
    ggplot(
        aes(x = new_date, y = cum_rainfall,
            group = year_1,
            size = the_year)) +
    geom_line(aes(col = the_year)) +
    labs(
        y = "cumulative Rainfall (mm)")+
    scale_x_date(name = NULL, date_breaks = "1 month", date_labels = "%b") +
    scale_color_manual(
        name = "Year",
        labels = c("Others", the_year),
        values = c("grey","red"))+
    scale_size_manual(breaks = c(F,T), values = c(0.5,0.7), guide = "none")+
    scale_y_continuous(breaks = seq(0,1500, 250), expand = c(0,50)) +
    theme_classic()

Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

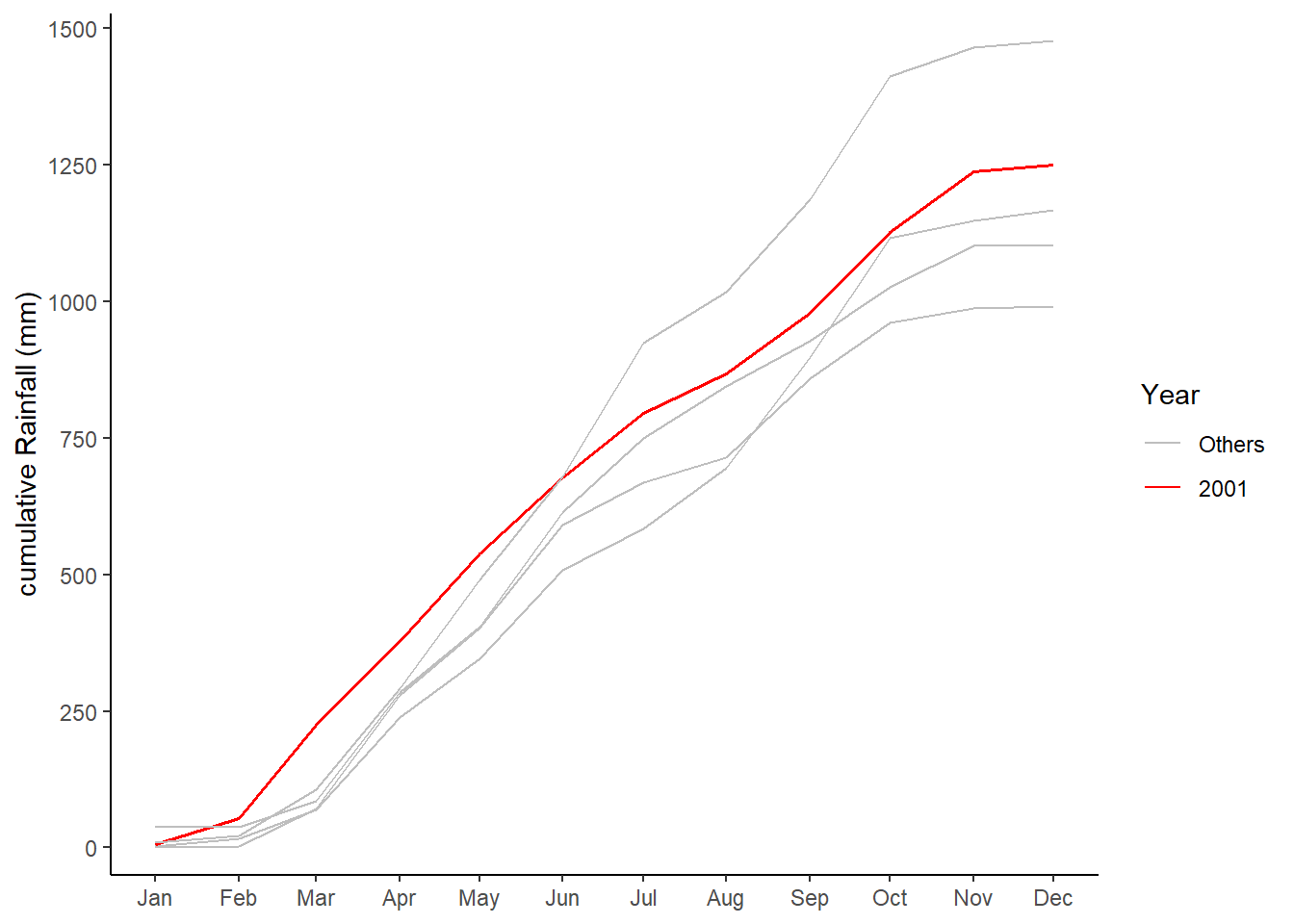

Figure 64.1: Cumulative rainfall pattern in Kumasi, Ghana (2000 - 2004)

dataF <-
    readstata13::read.dta13(
        "C:/Dataset/olivia_data_wide.dta",
        nonint.factors = TRUE)

dataF %>%
    group_by(educ) %>%
    summarize(across(c(mcv1, mcv2, mcv3, mcv4, mcv5), mean)) %>%
    pivot_longer(col = mcv1:mcv5) %>%
    mutate(
        illitrate = ifelse(educ=="None", "Illitrate","Educated") %>%
            factor()) %>%
    ggplot(aes(x = name, y = value, col = illitrate, group = educ)) +
    geom_line(aes(size=illitrate)) +
    geom_point(size = 1.5)+

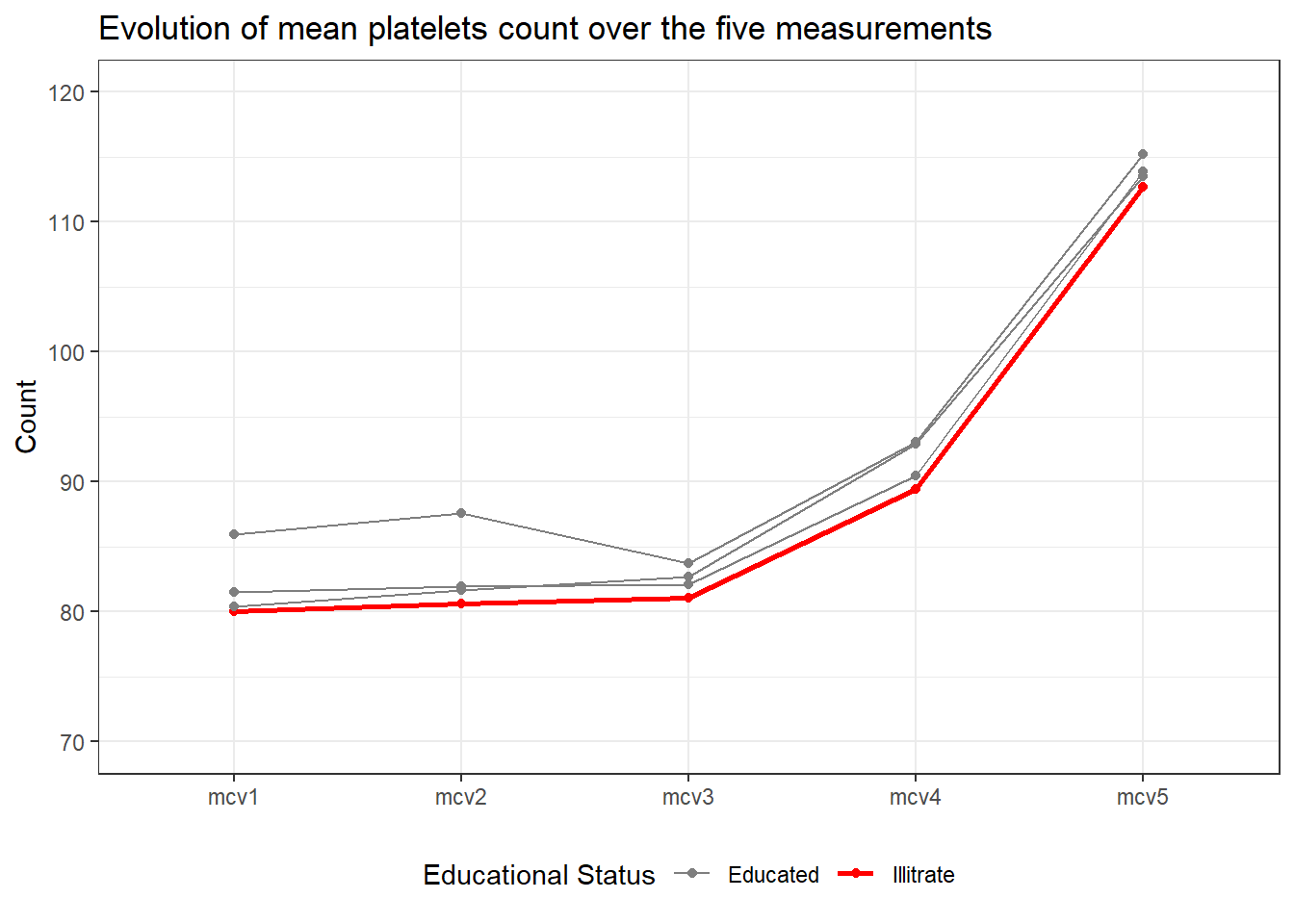

    labs(title = "Evolution of mean platelets count over the five measurements",
         y = "Count",x = NULL)+
    scale_color_manual(name = "Educational Status", values = c("grey50","red"),
                       label = c("Educated","Illitrate")) +
    scale_size_manual(name = "Educational Status", values = c(0.5, 1)) +
    scale_y_continuous(limits = c(70, 120)) +
    theme_bw()+
    theme(legend.position = "bottom")
